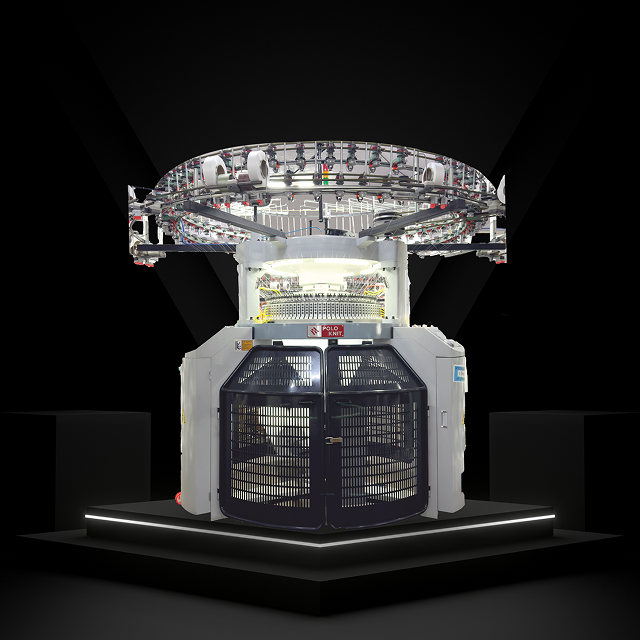

Double Jersey Knitting Machine

The Double Jersey Knitting Machine is engineered for stable, precise production of rib and interlock fabrics. Top and bottom gears adopt oil-soaking to reduce abrasion and noise and improve their precision and service life. A newly designed frame with simultaneous dial cam box displacement makes adjusting needle tolerance and clearance between top and bottom simpler and more accurate.

KEY SPECIFICATIONS

Exceptional Performance Meets Reliable Engineering

Model	Diameter	Gauge	Feeder
BD Double Knitting Machine	30” - 48”	16-42 G	72-144 F

KEY FEATURES

Built for Precise, High-Volume Double Knit Production

Simultaneous Dial Cam Box Displacement

Adopting a new designed frame, the dial cam box base and sleeve have simultaneous displacement so that it becomes more precise and simpler to adjust the needle tolerance and clearance between top and bottom.

Multi-Functional Cam Configuration

Equipped with cams of 2 tracks in dial and 4 tracks in cylinder. By changing the professional arrangement of cams, it changes the double structure and meets the demands of a changing market.

CNC-Processed Alloy Steel Cams

All cams are made of imported alloy tooling steel, CNC-processed for a smooth needle track and fluent, durable needle movement at high speed.

Oil-Bath Top and Bottom Gears

Top and bottom gears adopt oil-soaking so as to reduce abrasion and noise, then improve their precision and service life — ensuring stable performance across long production runs.

Strong Cast Iron Frame

Same high-quality heavy-duty cast iron frame as the Single Jersey — combining durability, low vibration, and consistent loop formation across all fabric structures.

Stable, Low-Noise Operation

Oil-bath drive system with high-class lubricating oil keeps running noise minimal and drive gear durability high — shift after shift.

Sample Showcase

Discover the vibrant results of Double Jersey Knitting Machine printing.

VERSATILE APPLICATIONS

What the Double Jersey Machine Produces

Rib Fabric

Classic 1×1 and 2×2 rib structures for cuffs, collars, waistbands, and rib knitwear.

Interlock Fabric

Smooth, stable double-knit fabric for polo shirts, formal knitwear, and structured garments.

Ponte & Heavy Knits

Dense, stable double jersey fabric for trousers, skirts, and fashion knitwear.

Technical & Performance Fabrics

Double-knit base fabrics for sportswear, innerwear, and technical textile applications requiring two-sided structure.
